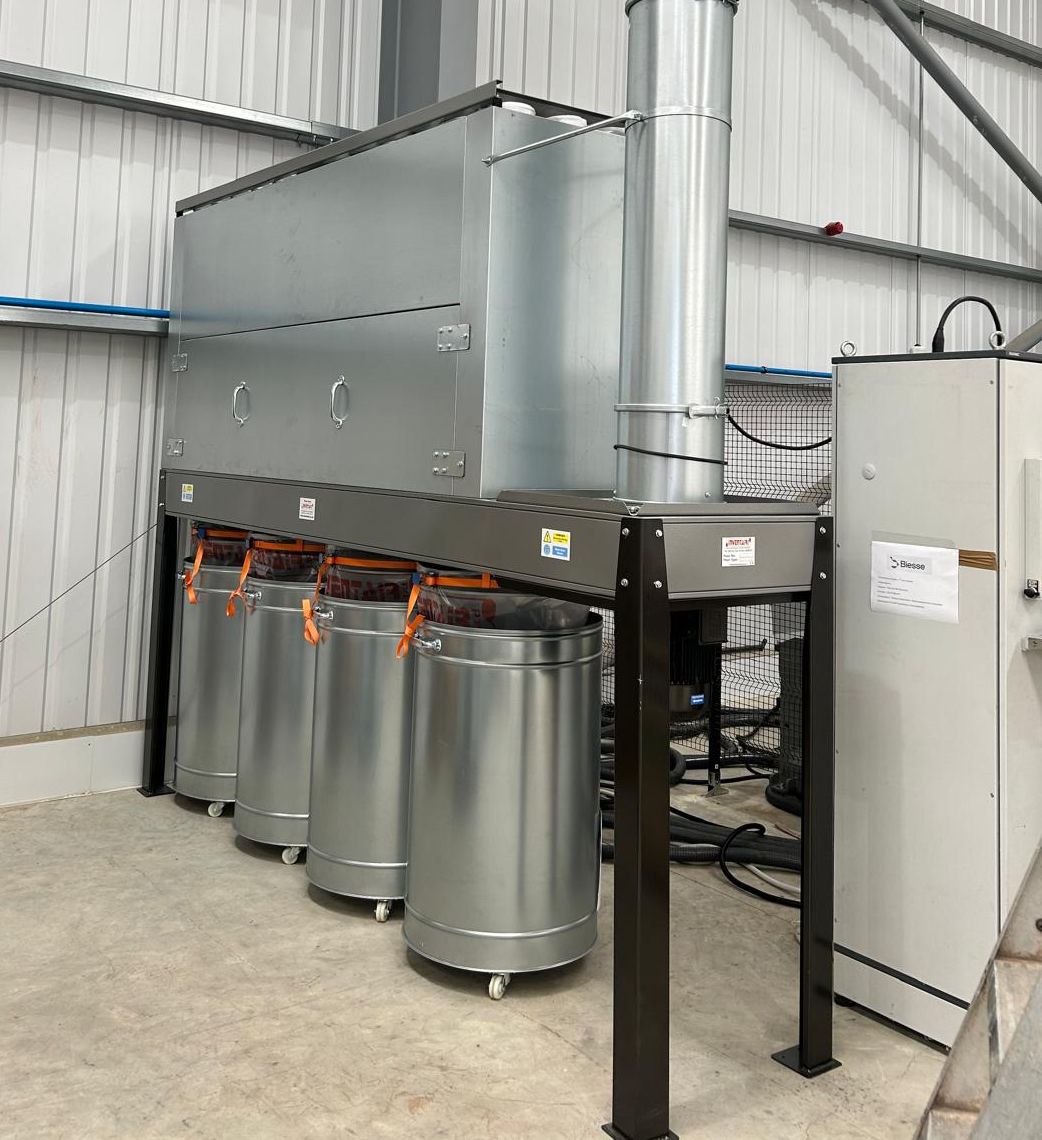

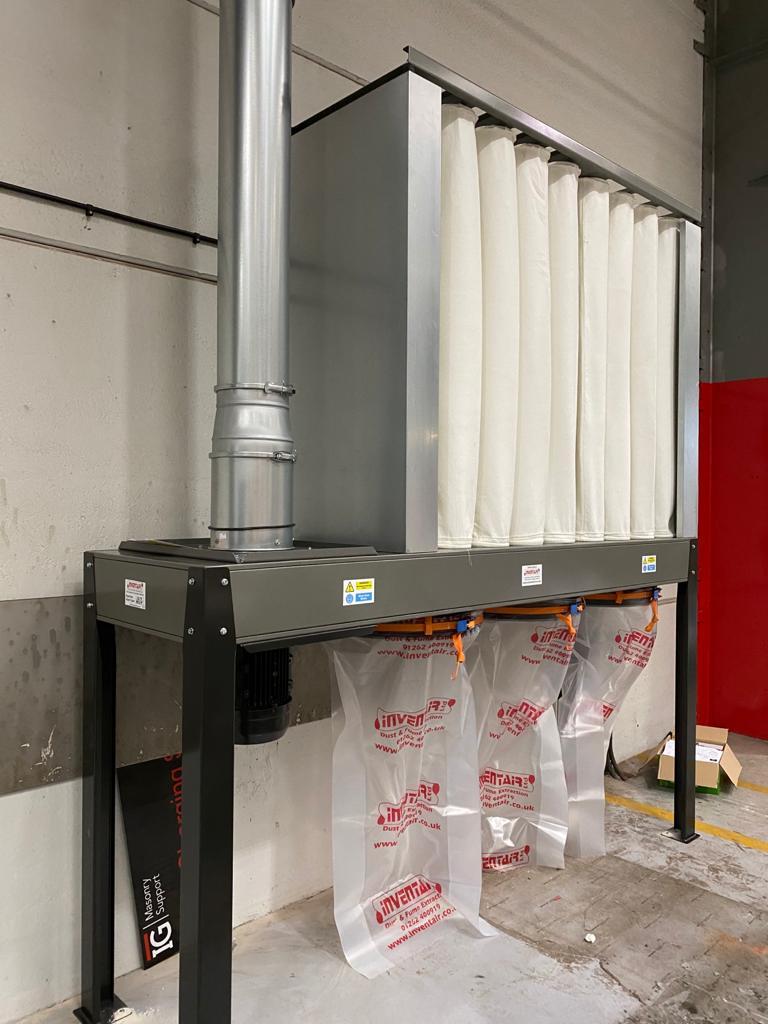

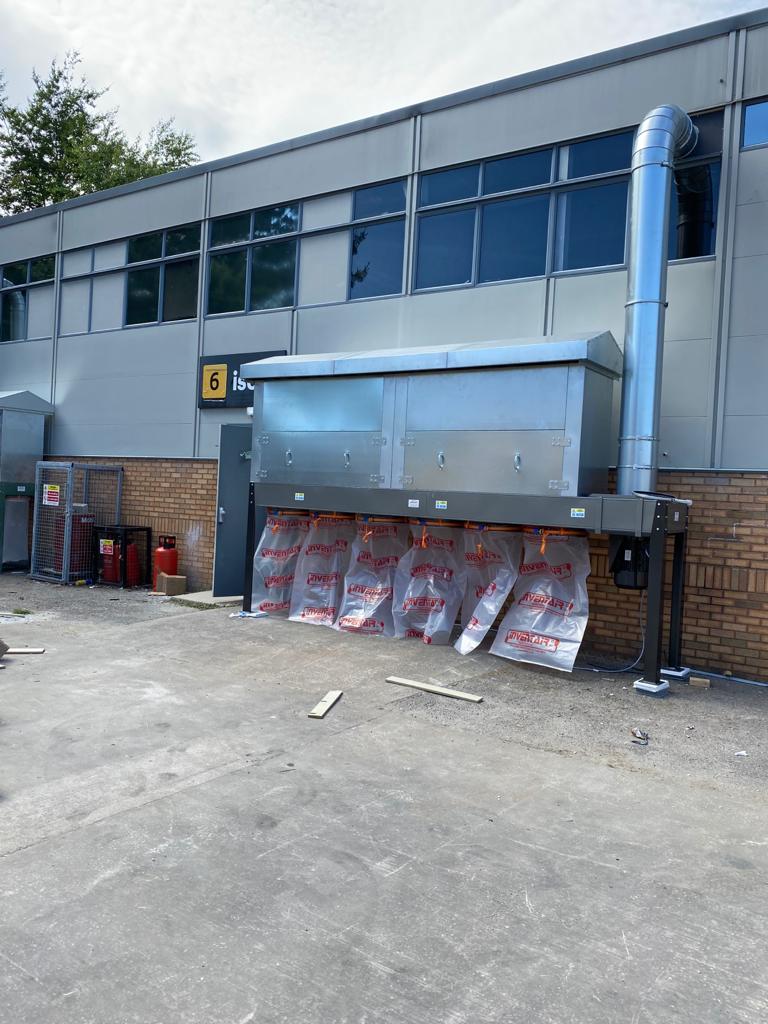

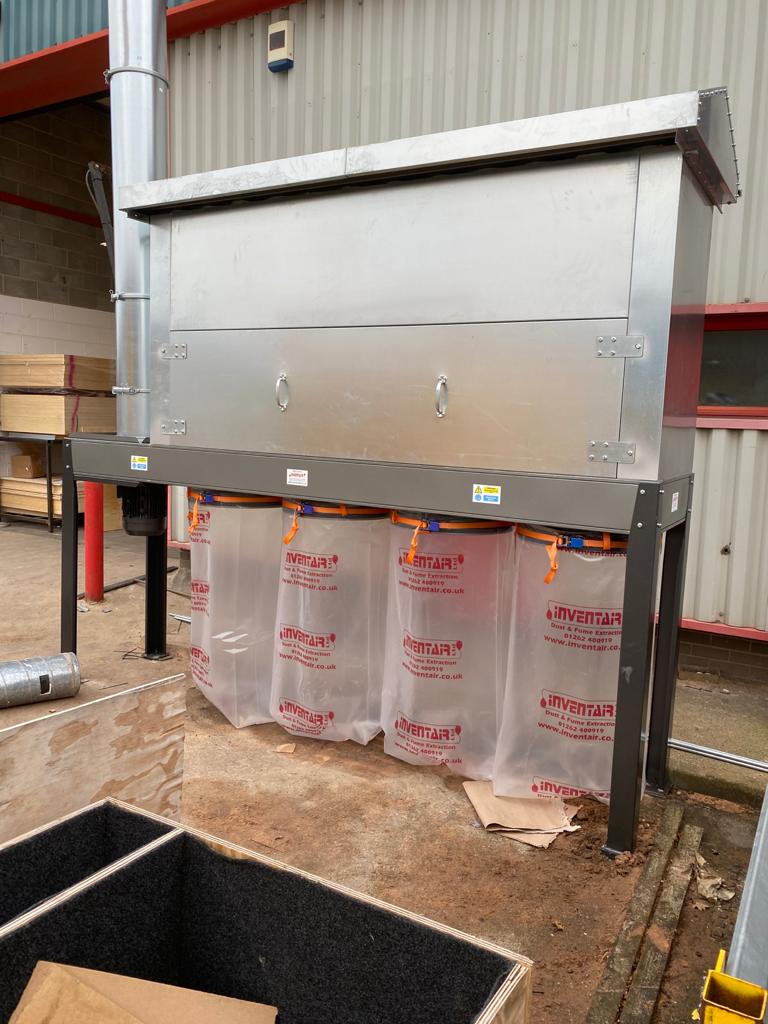

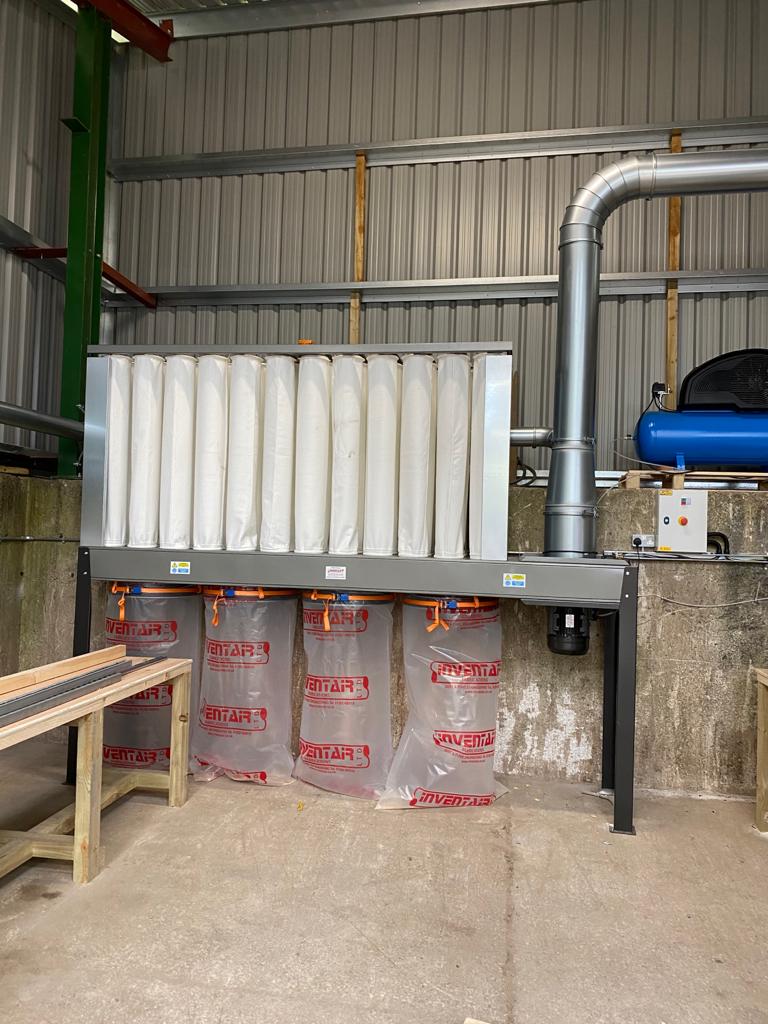

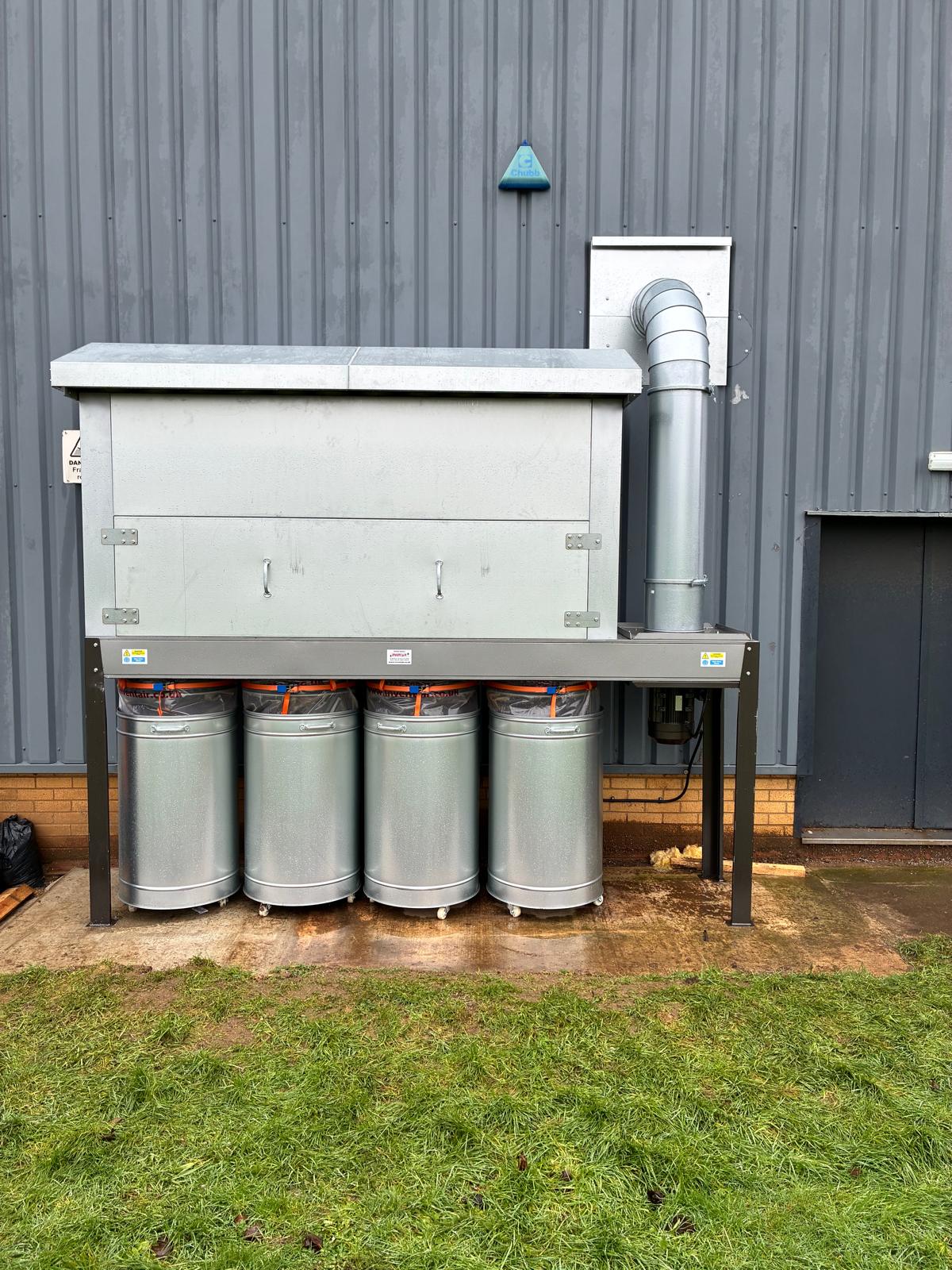

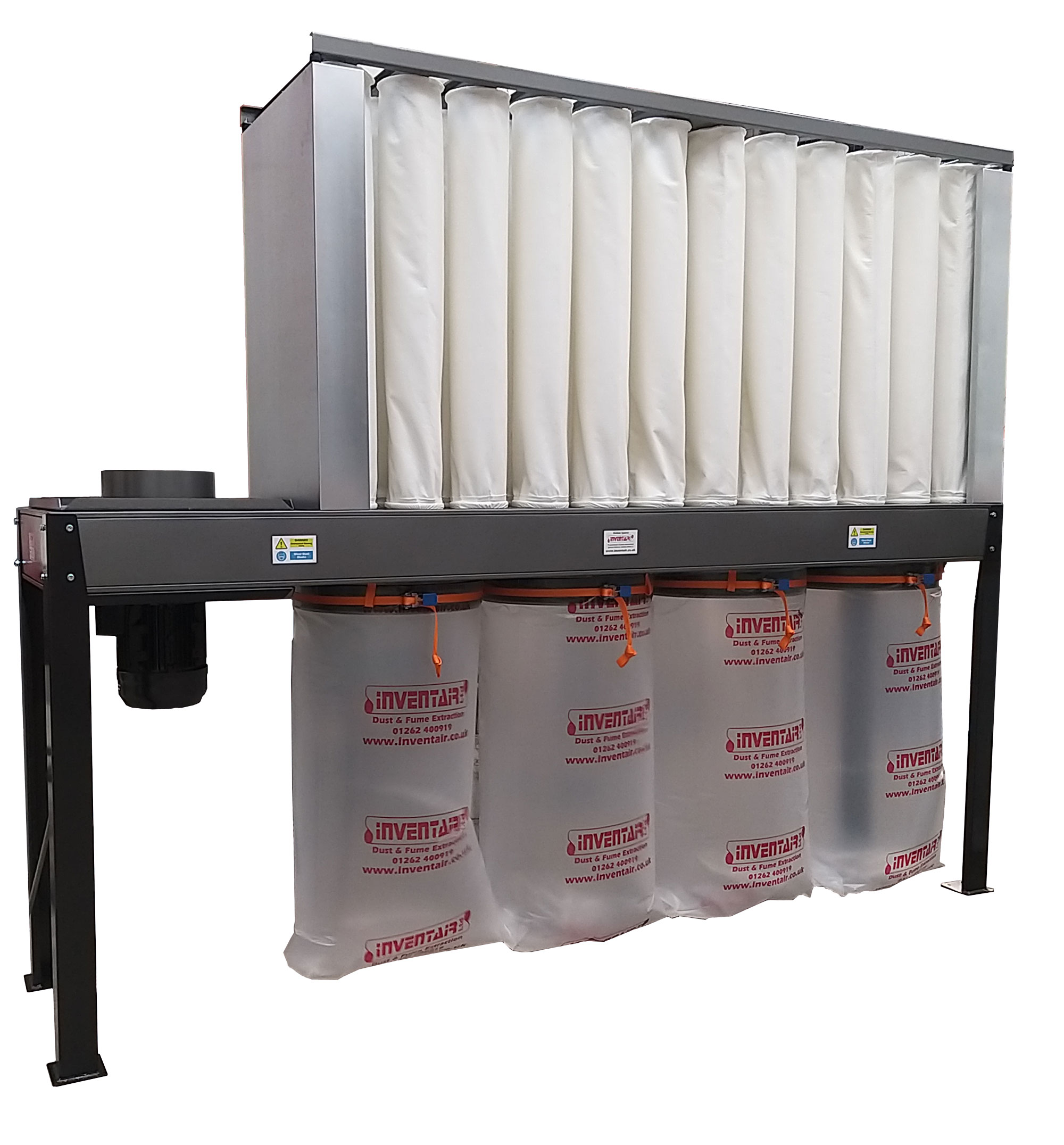

Dust Extractor Unit (Multi-Filter/MTFA)

Industrial woodworking dust extractor bagging units for capturing and filtering wood waste.

All these units are fitted with powerful, self-cleaning fans to transport the waste material through a ductwork system into the unit for separation.
On entering the unit the bulk waste spins into polythene bags and the finer dust is filtered through Highglaze Terylene Needlefelt media to allow the air to return to the working area without heat loss.

Product Description

Industrial woodworking dust extractor bagging units for capturing and filtering wood waste.

The process could not be simpler for the collection of chipboard and MDF sawdust to wood chippings.

All these units are fitted with powerful, self-cleaning fans to transport the waste material through a ductwork system into the unit for separation.
On entering the unit the bulk waste spins into polythene bags and the finer dust is filtered through Highglaze Terylene Needlefelt media to allow the air to return to the working area without heat loss.
Each unit is fitted with Inventair special swirl baffles which maximises even bag filling.


air-diagram2Auto Cleaning

Each filter unit in this range is supplied with its own D.O.L fan and shaker controller. This electronic unit controls the shut down routine to clean the filter media by allowing the fan to stop before activating the shaker motor mounted on top of the filter unit

MTFA Range – Performance

Ref Width A Length B Motor KW Vol. M3/H Pressure mm Filter Area Bag Capacity Weight kg Inlet Size
Mk1 MTFA (H.P) 725 1170 4 2500 305 6 4.6 m3 125 205
Mk2 MTFA (H.P) 725 2070 5.5 2900 355 12 9.1 m3 165 210
Mk1 MTFA 725 1170 2.2 1869 152 6 4.6 m3 125 205
Mk2 MTFA 725 1950 3 3050 178 12 9.1 m3 165 225
Mk3 MTFA 725 2740 5.5 4250 178 18 13.7 m3 245 250
Mk4 MTFA 725 3440 7.5 5950 230 24 18.2 m3 325 315
Mk6 MTFA 800 4750 11 7150 359 36 27.4 m3 400 350
Mk6 MTFA Extended 800 4750 15 7650 380 45 27.4 m3 425 350

Consumables for multi-filter dust extraction unit
